High End Models with advance features - SDD Detector
Pro+ ( 4 Collimator)
Pro+ II ( 2 Collimator)
| Model Name/Number | Pro+ II Bottom to Top |
|---|---|
| Weight | Approx. 35 kg |
| Brand | Microspec |
| Measuring Direction | Bottom to Top |
| Detector | Ketek SDD (Made in Germany) with resolution better then 180 eV |
| Accuracy | 0.15% |
| Elemental Range | Na to U including impurities like Ir, Re, Os, Ru, etc along with light elements like Mg, Al, P & S |
| Aperture Collimator | Multi-collimators upto 2(0.6 & 1 mm) fixed |
| Radiation Protection | Yes |
| Zoom Factor | 20x Digital zoom |
| Max. Sample Weight | 5 kg |
| External Dimensions | W510 x D570 x H450 mm |
| Inside chamber Dimensions | W550 x D550 x H30 mm |
| X-ray Tube | Tungsten tube, Microfocus, 50 kv, Oil cooled |
| Aperture (Collimator) | Automatic software controlled |
| Detector Type | SDD (Silicon Drift) detector peltier-cooled |
| Type | XRF Gold Testing Machine |
| Manufacturer | MicroP Co. Ltd., South Korea |
About:

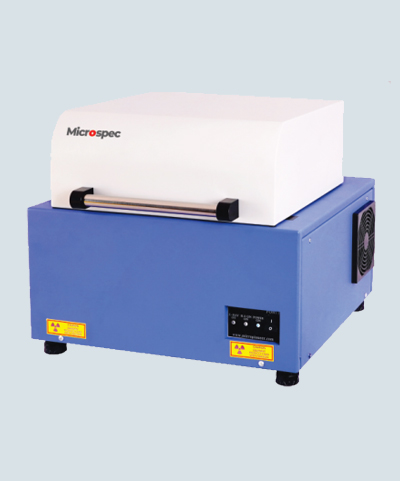

Bottom to top Microfocus gold testing machine with Ketek SDD Detector
(Made in Germany)
Other Details:
- Ketek SDD detectorwith resolution better then 180 eV
- Micro Focus, Oil cooled 50KV 1mA X-Ray tube make Canon, Japan
- Bottom to top geometry with fixed sample stage
- Detects All elements from Na-U including Ir, Re, Os, W, Ru, Sn, etc. along with light elements like Al, Mg, S & P.
- Accuracy better than 0.15% for Gold
Features:
- Collimator - Automatic Multi collimator changer up to 2 (0.6 & 1mm) fixed
- No Focusing required, just place the sample and Test
- Dual display function to show live testing to customers.
- Exclusive Shutterless design Extends Tube Life - Unlike other X-ray systems, MicroP XRF generates X-ray only while taking measurements. Since the X-ray tube completely shuts off between measurements, there is no need for a mechanical shutter. Less X-ray tube use equals cooler operating temperatures and longer tube life.
- Chamber Temperature Regulation - Another first in X-ray design is the exclusive cooling controls which maintain consists temperature of key system electronics. Measurement stability is further enhanced by the reduction in temperature variation. Easy to operate, just place sample and start
Top to bottom
| Model Name/Number | Pro+ II Top to Bottom |
|---|---|
| Weight | Approx. 35 kg |
| Brand | Microspec |
| Measuring Direction | Top to Bottom |
| Detector | Ketek SDD (Made in Germany) with resolution better then 180 eV |
| Accuracy | 0.15% |
| Elemental Range | Na to U including impurities like Ir, Re, Os, Ru, etc along with light elements like Mg, Al, P & S |
| Aperture Collimator | Multi-collimators upto 2 (0.6 & 1mm mm) Fixed |
| Radiation Protection | Yes |
| Power Supply | Manually adjustable sample stage |
| Zoom Factor | 20x Digital zoom |
| Max. Sample Weight | 5 kg |
| External Dimensions | W510 x D570 x H450 mm |
| Inside chamber Dimensions | W550 x D550 x H30 mm |
| X-ray Tube | Tungsten tube, Microfocus, 50 kv, Oil cooled |
| Aperture (Collimator) | Automatic software controlled |
| Detector Type | SDD (Silicon Drift) detector peltier-cooled |
| Type | XRF Gold Testing Machine |
| Manufacturer | MicroP Co. Ltd., South Korea |
About:
Top to Bottom Microfocus gold testing machine with Ketek SDD Detector (Made in Germany)
Other Details:
- Ketek SDD detectorwith resolution better then 180 eV
- Micro Focus, Oil cooled 50KV 1mA X-Ray tube make Canon, Japan
- Top to Bottom geometry with fixed sample stage
- Detects All elements from Na-U including Ir, Re, Os, W, Ru, Sn, etc. along with light elements like Al, Mg, S & P.
- Accuracy better than 0.15% for Gold
Features:
- Collimator - Automatic Multi collimator changer up to 2 (0.6 & 1mm) fixed
- No Focusing required, just place the sample and Test
- Dual display function to show live testing to customers.
- Exclusive Shutterless design Extends Tube Life - Unlike other X-ray systems, MicroP XRF generates X-ray only while taking measurements. Since the X-ray tube completely shuts off between measurements, there is no need for a mechanical shutter. Less X-ray tube use equals cooler operating temperatures and longer tube life.
- Chamber Temperature Regulation - Another first in X-ray design is the exclusive cooling controls which maintain consists temperature of key system electronics. Measurement stability is further enhanced by the reduction in temperature variation. Easy to operate, just place sample and start
Pro + Advance
| Model Name/Number | Pro + Advance |
|---|---|
| Weight | Approx. 45 kg |
| Brand | Microspec |
| Measuring Direction | Top to Bottom |
| Detector | Ketek SDD with resolution better then 180 eV |
| X-Ray Tube | Micro Focus,Oil cooled, 50 Kva, make Toshiba Japan |
| Elemental Range | Na to U including impurities like Ir, Re, Os, Ru, etc along with light elements like Mg, Al, P & S |
| Accuracy | 0.15% |
| Element Range | Na to U including impurities like Ir, Re, Os, Ru, along with light elements like Mg, Al, P & S |
| Aperture Collimator | Multi-collimators upto 4 (0.3, 0.6, 1 & 2 mm) customizable |
| Radiation Protection | Yes |
| Power Supply And Consumption | 230 V, 50/60 Hz, Max. 200 W |
| Operating Temperature | 20 To 27 Degree Celsius |
| Sample Positioning | Manually adjustable sample stage |
| Video Microscope | High-resolution CCD colour camera for optical monitoring of the measurement location with Laser |
| Zoom Factor | 20x digital zoom |
| Max. Sample Weight | 3 kg |
| External Dimensions | W610 x D 670 x H490 mm |
| Inside Chamber Dimensions | W550 x D 550 x H30 mm |
| Aperture (Collimator) | Automatic software controlled |
| Detector Type | SDD (Silicon Drift) detector peltier-cooled |
| Resolution | |
| Manufacturer | MicroP Co. Ltd., South Korea |
| Type | XRF Gold Testing Machine |
About:

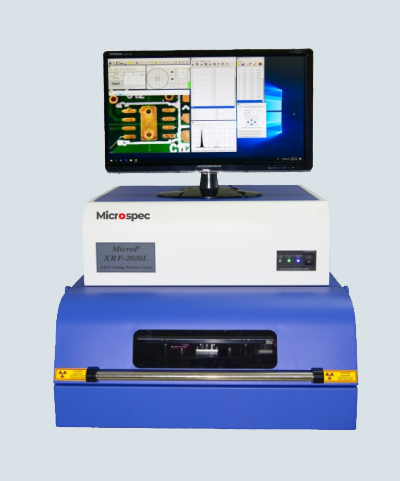

High-End Top to Bottom Microfocus Gold testing machine with Ketek SDD detector (Made in Germany)
Other Details:
- Ketek SDD detectorwith resolution better then 180 eV
- Micro Focus, Oil cooled 50KV 1mA X-Ray tube make Canon, Japan
- Top to Bottom geometry with fixed sample stage
- Detects All elements from Na-U including Ir, Re, Os, W, Ru, Sn, etc. along with light elements like Ai, Mg, S & P.
- Accuracy better than 0.15% for Gold
Features:
- Collimator - Automatic Multi collimator changer up to 4 (0.3,0.6,1.0 & 2.0mm) customizable
- Detector Safety - The system has mechanical shielding along with buzzer to prevent detector from getting damaged by sample
- Laser focus Feature - Precision Laser focusing on parts provide the most consistent measurements accuracy possible and eliminates operator error.
- Dual display function to show live testing to customers.
- Exclusive Shutterless design Extends Tube Life - Unlike other X-ray systems, MicroP XRF generates X-ray only while taking measurements. Since the X-ray tube completely shuts off between measurements, there is no need for a mechanical shutter. Less X-ray tube use equals cooler operating temperatures and longer tube life.
- Chamber Temperature Regulation - Another first in X-ray design is the exclusive cooling controls which maintain consists temperature of key system electronics. Measurement stability is further enhanced by the reduction in temperature variation.
